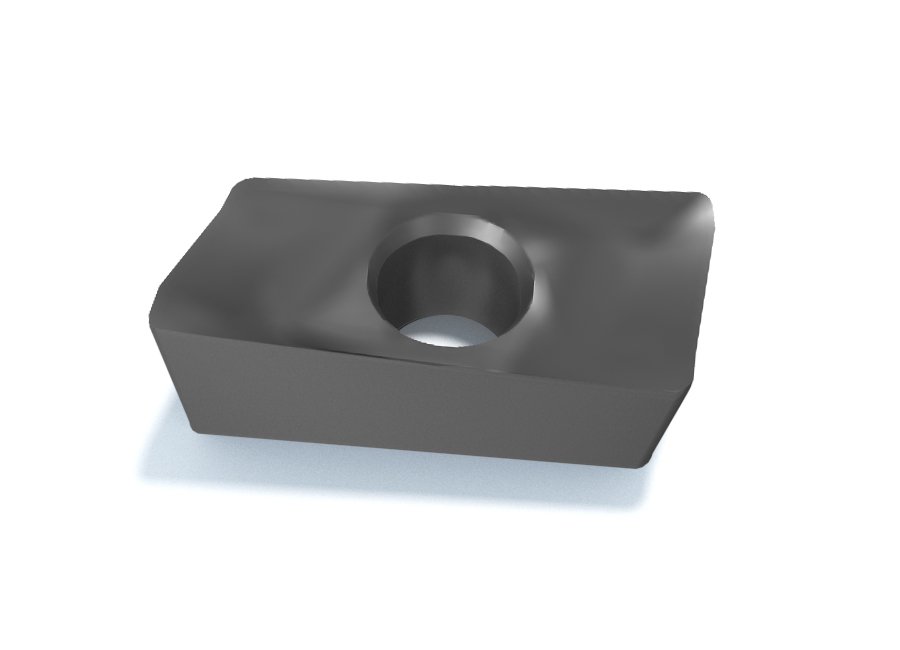

APMT1135PDER-QH2 PS5925 90 Degree Alpha Mill Indexable Milling Inserts (Sangeo)
£4.50 exc. VAT
10 pieces (Min. Order)
APMT Alpha Mill inserts have a long tool life at high speed, high feed and deeper cutting due to a low cutting resistance and strong cutting edge making them ideal for 90-degree helical milling. The APMT’s low cutting resistance is achieved by the unique Sangeo insert design, which utilises the Alpha Curve cutting edge and a convex/concave design.
Minimum interference for better chip control
Chip breaker
All positive shaped sides to minimize interference
High rake angle
Decreasing cutting resistance
Sharp cutting edge
- APMTÂ style carbide milling inserts
- PS5925 / PS5915 Grade: Steel/Hard Steel
- Positive geometry
- Parallelogram shape
- Universal grade for interrupted machining of steel, cast-iron, hard to cut materials and stainless steel with stable machinability
- New coating layer with superior wear resistance with high toughness substrate
Description
Product Information
Features & Benefits
APMT1135PDER-QH2 / APMT1135PDER-QM2 / APMT1135PDSR-QM / APMT1135PDSR-QX PS5925 Indexable Carbide Milling Inserts. PS5925, feature tough PVD coated MT-TiCN+TiC+Al2O3+TiN layer on a P15-P35 / M10-M20 substrate for very high toughness. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.
- APMTÂ style carbide milling inserts
- Positive geometry
- Parallelogram shape
- Universal grade for interrupted machining of steel, cast-iron, hard to cut materials and stainless steel with stable machinability
- New coating layer with superior wear resistance with high toughness substrate
Specification
| Brand | Sangeo |
| Product Range | Indexable Milling Inserts |
| Insert Style | APMT |
| Relief Angle | 11° |
| Shape – Degrees | Parallelogram |
| Insert Geometry | Positive |
| Applicable Materials | Steel |
| Chipbreaker | QX/QM/QM2/QH2 |
| Grade Description | PS5925 (P15-P35 / M10-M20) |
| T | 3,50 |
| IC | 6,35 |
| Ød | 2,80 |
| ISO Code | APMT 1135 |
Additional information
| APMT 1135 | APMT1135PDSR-QX PS5925, APMT1135PDSR-QM PS5925, APMT1135PDER-QM2 PS5925, APMT1135PDER-QH2 PS5925 |
|---|
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping & Delivery
- Free Shipping on All Orders
- International Tracked Service > £ 20
