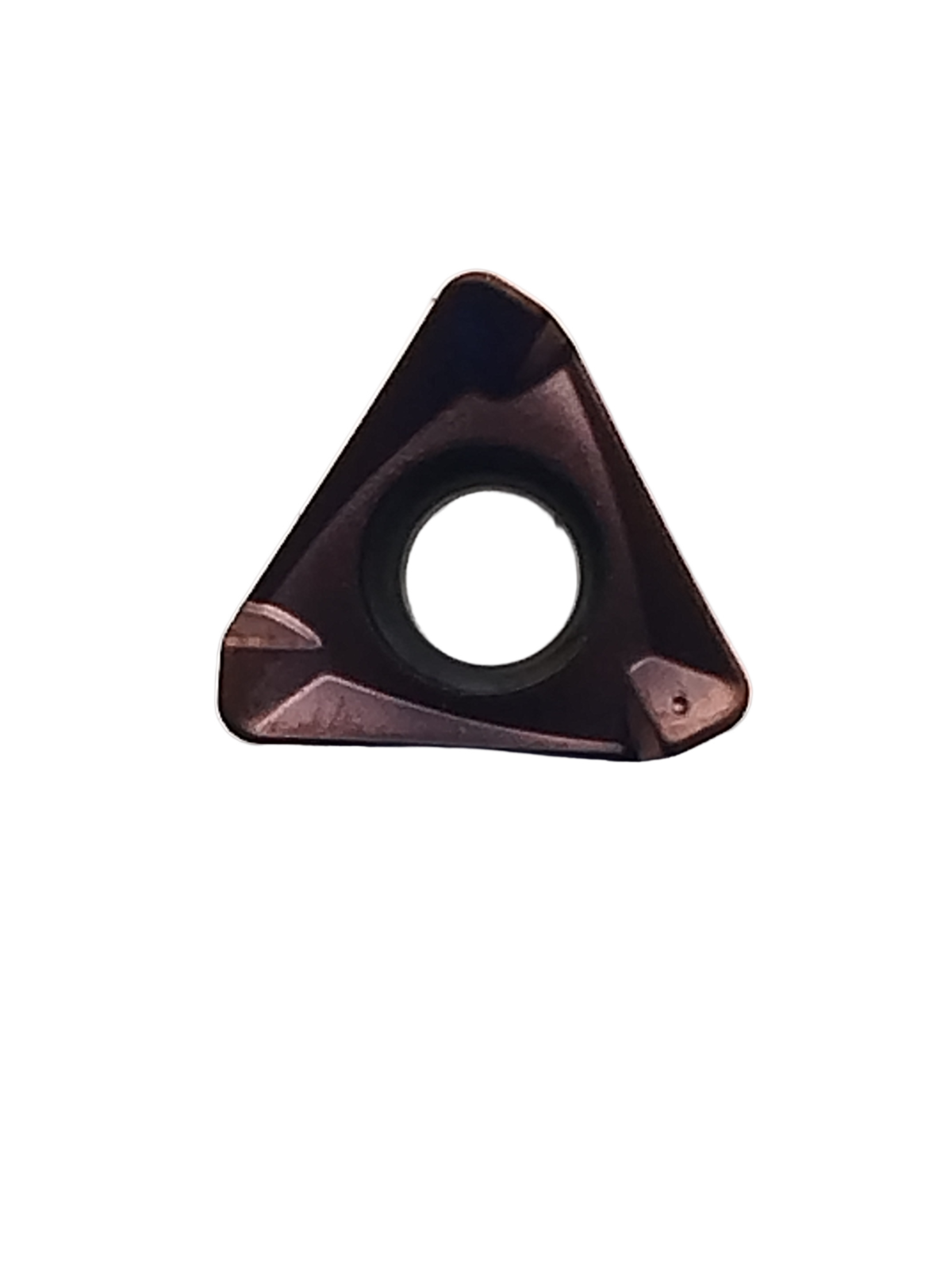

3PGX100404R-M PS7925 90 Degree Indexable Milling Inserts (Sangeo)
£7.00 exc. VAT
10 pieces (Min. Order)
3PGX100404R-M PS7925 Indexable Carbide Milling Inserts feature tough PVD coated MT-TiCN+TiC+α-Al2O3 layer on an M20-M30 substrate for very high toughness. The PS7925, medium to roughing of hard-to-cut materials and Stainless Steel. Sangeo’s range of milling inserts is made from a fine micro-grain carbide substrate for excellent toughness and performance.
- 3PGX style carbide milling inserts
- PS7925 / PS7915 Grade: Stainless Steel
- Positive geometry
- Triangular shape
- Milling grade for medium to roughing of hard to cut materials and stainless steel
- 2-4 micron Nano AlCrN AlCrSiN coating
Description
Product Information
Features & Benefits
The 3PGX100404R-M / 3PGX100408R-M PS7925 Indexable Carbide Milling Inserts feature tough PVD coated MT-TiCN+TiC+α-Al2O3 layer on a M20-M30 substrate for very high toughness. The PS7925, medium to roughing of hard to cut materials and stainless steel. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.
- 3PGX style carbide milling inserts
- Positive geometry
- Triangular shape
- Milling grade for medium to roughing of hard to cut materials and stainless steel
- 2-4 micron Nano AlCrN AlCrSiN coating
Specification
| Brand | Sangeo |
| Product Range | Indexable Milling Inserts |
| Insert Style | 3PGX |
| Relief Angle | 11° |
| Shape – Degrees | Triangular |
| Insert Geometry | Positive |
| Applicable Materials | Stainless Steel |
| Chipbreaker | M |
| Grade Description | PS7925 (M20-M30) |
| T | 4,00 |
| IC | 6,90 |
| Ød | 2,20 |
| ISO Code | 3PGX 1004 |
Additional information
| 3PGX 1004 | 3PGX100404R-M PS7925, 3PGX100408R-M PS7925 |
|---|
