TPKN1603PDTR-SU PS5925 Indexable Carbide Milling Insert (Sangeo)
£5.00 exc. VAT
10 pieces (Min. Order)
TPKN1603PDTR-SU PS5925 Indexable Carbide Milling Inserts. PS5925, feature tough PVD coated MT-TiCN+TiC+Al2O3+TiN layer on a P15-P35 / M10-M20 substrate for very high toughness. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.
- TPKN style carbide milling inserts
- PS5930 / PS5915 / PS5915S / PS5925 Grade: Steel/Hard Steel
- Positive geometry
- Triangular shape
- Universal grade for interrupted machining of steel, cast-iron, hard to cut materials and stainless steel with stable machinability
- New coating layer with superior wear resistance with high toughness substrate
Description
Product Information
Features & Benefits
TPKN1603PDTR-SU PS5925 Indexable Carbide Milling Inserts. PS5925, feature tough PVD coated MT-TiCN+TiC+Al2O3+TiN layer on a P15-P35 / M10-M20 substrate for very high toughness. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.
- TPKN style carbide milling inserts
- Positive geometry
- Triangular shape
- Universal grade for interrupted machining of steel, cast-iron, hard to cut materials and stainless steel with stable machinability
- New coating layer with superior wear resistance with high toughness substrate
Specification
| Brand | Sangeo |
| Product Range | Indexable Milling Inserts |

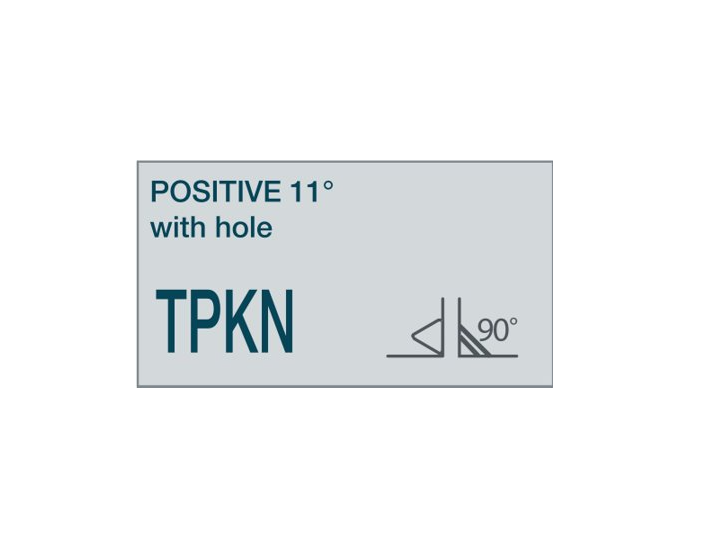

| Insert Style | TPKN |
| Relief Angle | 11° |
| Shape – Degrees | Triangular |
| Insert Geometry | Positive |
| Applicable Materials | Steel |
| Chipbreaker | SU |
| Grade Description | PS5925 (P15-P35 / M10-M20) |
| T | 3,18 |
| IC | 9,525 |
| Ød | |
| ISO Code | TPKN 1603 |
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping & Delivery
- Free Shipping on All Orders
- International Tracked Service > £ 20
