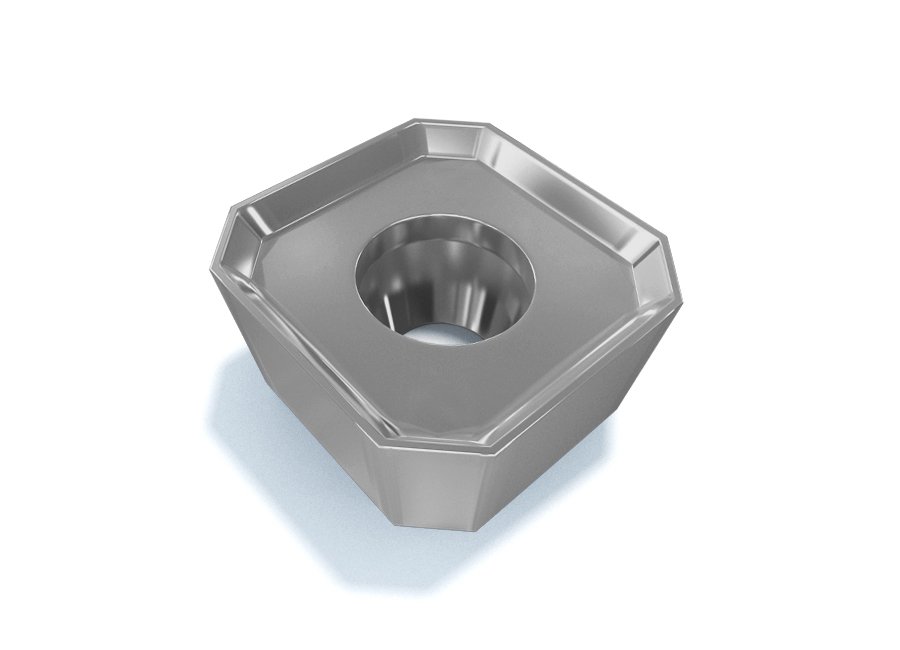

SEHT12T3-CM US2915 Indexable Milling Insert (Sangeo)
£6.00 exc. VAT
10 pieces (Min. Order)
SEHT12T3-CM US2915 Indexable Carbide Milling Inserts for aluminium available in a US2915 uncoated grade. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.
- SEHT style carbide milling inserts
- US2915 Grade: Aluminium & Non-FerrousÂ
- Positive geometry
- Square shape
- Milling grade for machining of Aluminium & Non-Ferrous
- Increased wear & chipping resistance as using a ultra fine substrate
- Excellent tool life with special surface treatment & sharp cutting edge of ALU chip breaker
Description
Product Information
Features & Benefits
The SEHT12T3-CM US2915 Indexable Carbide Milling Inserts for aluminium available in a US2915 uncoated grade. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.
- SEHT style carbide milling inserts
- Positive geometry
- Square shape
- Milling grade for machining of Aluminium & Non-Ferrous
- Increased wear & chipping resistance as using a ultra fine substrate
- Excellent tool life with special surface treatment & sharp cutting edge of ALU chip breaker
Specification
| Brand | Sangeo |
| Product Range | Indexable Milling Inserts |
| Insert Style | SEHT |
| Relief Angle | 20° |
| Shape – Degrees | Square |
| Insert Geometry | Positive |
| Applicable Materials | Aluminium & Non-Ferrous |
| Chipbreaker | CM |
| Grade Description | US2915 (K05-K25) |
| T | 3,97 |
| ICÂ | 12,7 |
| Ød | 4,40 |
| ISO Code | SEHT 12T3 |
