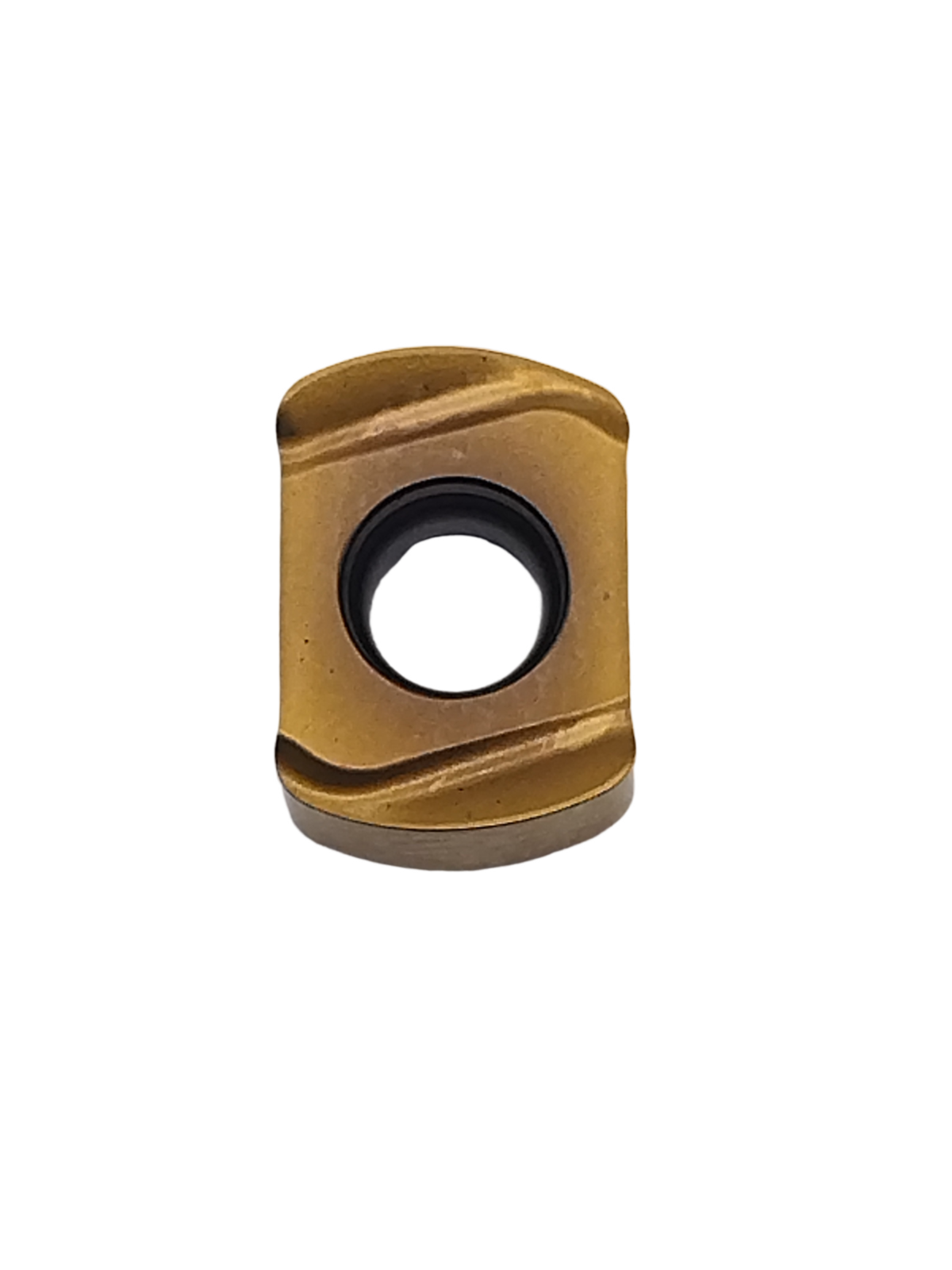

BLGX0603R-M PS7925 High Feed HFM Mill Indexable Milling Inserts (Sangeo)
£6.00 exc. VAT
10 pieces (Min. Order)
BLGX high feed inserts for the Sangeo HFMD high feed milling system. The 4 corners, double-sided inserts and high speed/high feed machining achieve the ultimate productivity and efficiency. The insert’s high rake angle and helix design can achieve significantly reduced cutting resistance allowing the HFMD system to machine high speeds and feeds.
Sangeo BLGX high-feed milling inserts for use with HFMD Milling bodies
Unique insert geometry features a high rake angle and helix design
Ideal for high speed and high feed machining with low cutting resistance
Excellent clamping stability due to the unique clamping system and insert pocket
Increased stability helps minimise noise and vibration, thus giving an excellent surface finish.
No need to change the holder if you use the TaeguTec holder.
The BLGX0603R-M PS7925 Indexable Carbide Milling Inserts feature tough PVD coated MT-TiCN+TiC+α-Al2O3 layer on an M20-M30 substrate for very high toughness. The PS7925, medium to roughing of hard-to-cut materials and stainless steel. Sangeo’s range of milling inserts is made from a fine micro-grain carbide substrate for excellent toughness and performance.
- BLGX style carbide milling inserts
- PS7925 / PS7915 Grade: Stainless SteelÂ
- Milling grade for medium to roughing of hard to cut materials and stainless steel
- 2-4 micron Nano AlCrN AlCrSiN coating
Description
Product Information
Features & Benefits
The BLGX0603R-M PS7925 Indexable Carbide Milling Inserts feature tough PVD coated MT-TiCN+TiC+α-Al2O3 layer on a M20-M30 substrate for very high toughness. The PS7925, medium to roughing of hard to cut materials and stainless steel. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.
- BLGX style carbide milling inserts
- Milling grade for medium to roughing of hard to cut materials and stainless steel
- 2-4 micron Nano AlCrN AlCrSiN coating
Specification
| Brand | Sangeo |
| Product Range | Indexable Milling Inserts |
| Insert Style | BLGX |
| Shape – Degrees | |
| Applicable Materials | Stainless Steel |
| Chipbreaker | M |
| Grade Description | PS7925 (M20-M30) |
| ISO Code | BLGX 0603 |
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping & Delivery
- Free Shipping on All Orders
- International Tracked Service > £ 20
