BLGX0603R-M PS7925 High Feed HFM Mill Indexable Milling Inserts (Sangeo) £6.00 exc. VAT
Back to products
blank

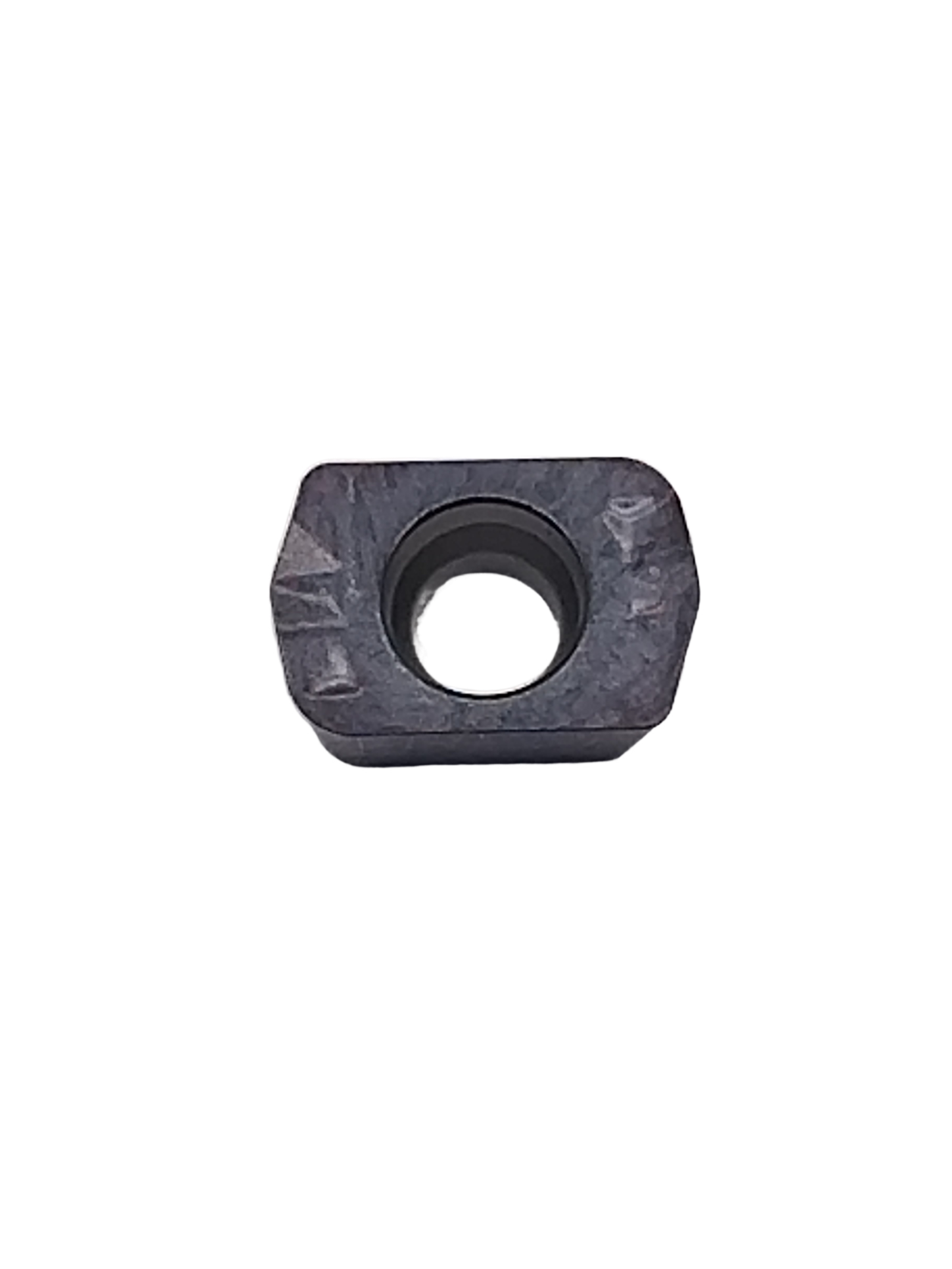

EPGX060210R-SM PS7925 High Feed Milling Inserts (Sangeo) £7.90 exc. VAT

EPGX High Feed Milling Inserts (Sangeo)

£7.90 exc. VAT

10 pieces (Min. Order)

EPGX060210R-SM PS5915 milling inserts for the Sangeo HF4 EPGX high-feed milling system. The HF4 High feed mill will improve productivity, and slash cycle with increased depth of cut. EPGX inserts have a high-cost efficiency with 4 cutting edges. Dedicated grades and chip breakers are available for steel, stainless steel, HRSA’s & cast iron.

EPGX inserts with 4 cutting edges.

High-feed milling inserts for the Sangeo HF4 mill.

High feed mill which will improve productivity, slash cycle with increased depth of cut.

High-cost efficiency with 4 cutting edges.

Dedicated grades & chip breakers for steel, stainless steel, HRSA’s & cast iron.

  • EPGX style carbide milling inserts
  • PS5925 / PS5915 Grade: Steel/Hard Steel
  • Milling grade for medium and roughing of steel
  • New coating layer with superior wear resistance with high toughness substrate
Compare
Add to wishlist
SKU: EPGX060210R-SMPS5915 Categories: ,
Description

Product Information

Features & Benefits

The EPGX060210R-SM PS5915 Indexable Carbide Milling Inserts feature tough PVD coated MT-TiCN+TiC+Al2O3+TiN layer on a P05-P25 substrate for very high toughness. The PS5915 milling grade ideal for medium and roughing of steel. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.

  • EPGX style carbide milling inserts
  • Milling grade for medium and roughing of steel
  • New coating layer with superior wear resistance with high toughness substrate

Specification

Brand Sangeo
Product Range Indexable Milling Inserts
Insert Style EPGX
Applicable Materials Steel
Chipbreaker SM
Grade Description PS5915 (P05-P25 steel)
ISO Code EPGX 0602
