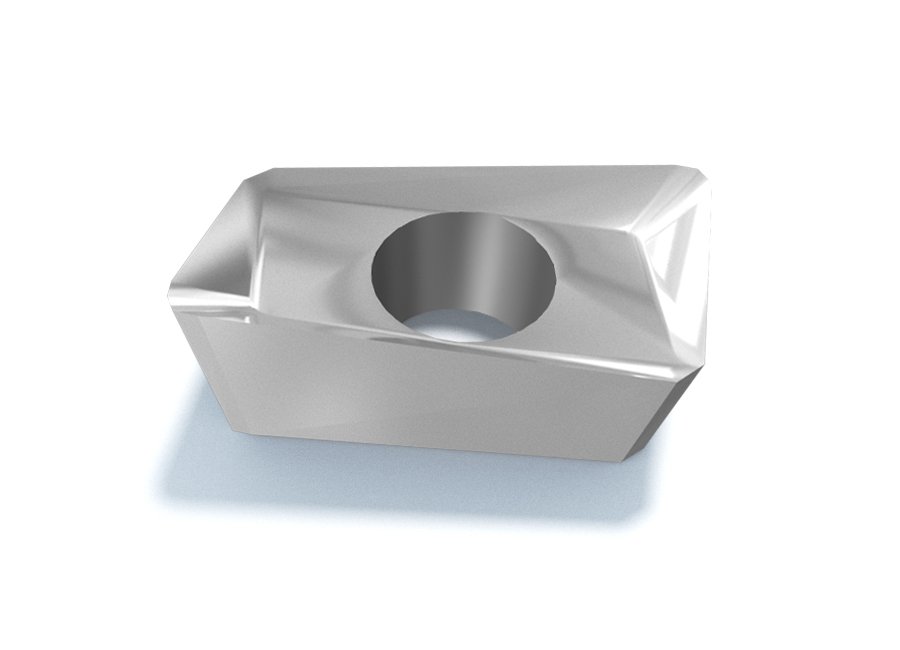

APKT1604PDER-ALU US2915 90 Degree Alpha Mill Indexable Milling Inserts (Sangeo)
£6.00 exc. VAT
10 pieces (Min. Order)
APKT Alpha Mill inserts have a long tool life at high speed, high feed and deeper cutting due to a low cutting resistance and strong cutting edge making them ideal for 90-degree helical milling. The APKT’s low cutting resistance is achieved by the unique Sangeo insert design, which utilises the Alpha Curve cutting edge and a convex/concave design.
Minimum interference for better chip control
Chip breaker
All positive shaped sides to minimize interference
High rake angle
Decreasing cutting resistance
Sharp cutting edge
The APKT1604PDER-ALU / APKT160420-ALU / APKT160424-ALU US2915 Indexable Carbide Milling Insert (Sangeo) Indexable Carbide Milling Inserts for aluminium available in a US2915 uncoated grade. Sangeo’s range of milling inserts is made from a fine micro-grain carbide substrate for excellent toughness and performance.
- APKT style carbide milling inserts
- US2915 Grade: Aluminium & Non-Ferrous
- Positive geometry
- Parallelogram shape
- Milling grade for machining of Aluminium & Non-Ferrous
- Increased wear & chipping resistance as using a ultra fine substrate
- Excellent tool life with special surface treatment & sharp cutting edge of ALU chip breaker
Description
Product Information
Features & Benefits
The APKT1604PDER-ALU / APKT160420-ALU / APKT160424-ALU US2915 Indexable Carbide Milling Insert (Sangeo)Indexable Carbide Milling Inserts for aluminium available in a US2915 uncoated grade. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.
- APKT style carbide milling inserts
- Positive geometry
- Parallelogram shape
- Milling grade for machining of Aluminium & Non-Ferrous
- Increased wear & chipping resistance as using a ultra fine substrate
- Excellent tool life with special surface treatment & sharp cutting edge of ALU chip breaker
Specification
| Brand | Sangeo |
| Product Range | Indexable Milling Inserts |
| Insert Style | APKT |
| Relief Angle | 11° |
| Shape – Degrees | Parallelogram |
| Insert Geometry | Positive |
| Applicable Materials | Aluminium & Non-Ferrous |
| Chipbreaker | ALU |
| Grade Description | US2915 (K05-K25) |
| T | 4,76 |
| IC | 9,525 |
| Ød | 4,50 |
| ISO Code | APKT 1604 |
Additional information
| APKT 1604 ALU US2915 | APKT160420-ALU US2915 ,APKT160424-ALU US2915 ,APKT1604PDER-ALU US2915 |
|---|
