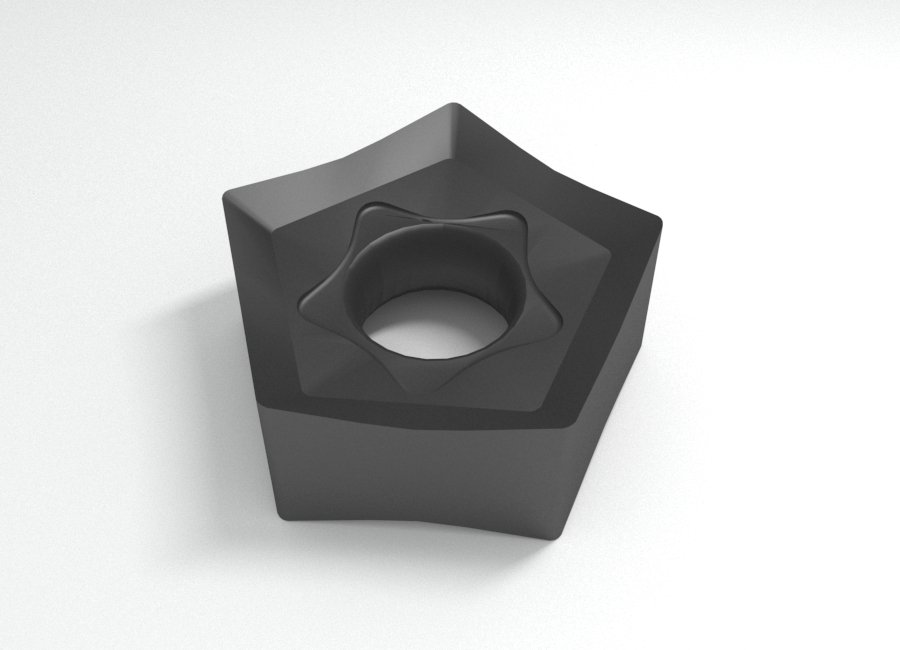

PNMU 45 Degree Rich Mill Indexable Milling Inserts (Sangeo)
£7.50 exc. VAT
10 pieces (Min. Order)
PNMU0905XNER-MM PS5915 45 Degree Rich Mill Indexable Milling Inserts feature tough PVD-coated MT-TiCN+TiC+Al2O3+TiN layer on a P05-P25 substrate for very high toughness. The PS5915 milling grade is ideal for medium and roughing of steel. Sangeo’s range of milling inserts is made from a fine micro-grain carbide substrate for excellent toughness and performance.
- PNMU style style carbide milling inserts
- PS5925 / PS5915 Grade: Steel/Hard SteelÂ
- Pentagon shape
- Milling grade for medium and roughing of steel
- New coating layer with superior wear resistance with high toughness substrate
Description
Product Information
Features & Benefits
The PNMU0905XNER-MM PS5915 Indexable Carbide Milling Inserts feature tough PVD coated MT-TiCN+TiC+Al2O3+TiN layer on a P05-P25 substrate for very high toughness. The PS5915 milling grade ideal for medium and roughing of steel. Sangeo’s range of milling inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.
- PNMU style style carbide milling inserts
- Pentagon shape
- Milling grade for medium and roughing of steel
- New coating layer with superior wear resistance with high toughness substrate
Specification
| Brand | Sangeo |
| Product Range | Indexable Milling Inserts |
| Insert Style | PNMU |
| Shape – Degrees | Pentagon |
| Applicable Materials | Steel |
| Chipbreaker | MM |
| Grade Description | PS5915 (P05-P25 steel) |
| ISO Code | PNMU 0905 |
