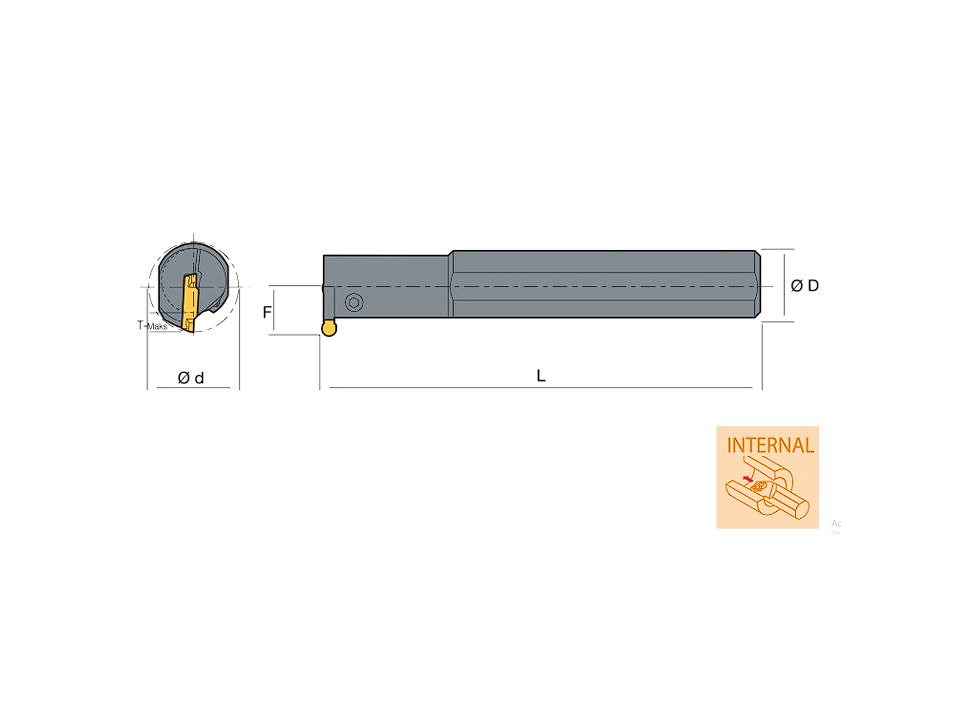

25mm STTIR Right Hand Internal Grooving Holder for 2mm SAG Inserts – STTIR25-2T4 Series (Sangeo)
£41.50 exc. VAT
The STTI series holders are suitable for internal grooving, parting and profiling with just 1 tool. These holders are for insert widths 2mm-4mm with T-Max from 4mm-8mm. STTI holders feature an extremely strong clamping system with 2 clamping positions on the top and bottom of the insert to equally disperse clamping force, increasing rigidity, accuracy and tool life.
Available in right or left hand types.
Description
The STTI series holders are suitable for internal grooving, parting and profiling with just 1 tool. These holders are for insert widths 2mm-4mm with T-Max from 4mm-8mm. STTI holders feature an extremely strong clamping system with 2 clamping positions on the top and bottom of the insert to equally disperse clamping force, increasing rigidity, accuracy and tool life.
Available in right or left hand types.
