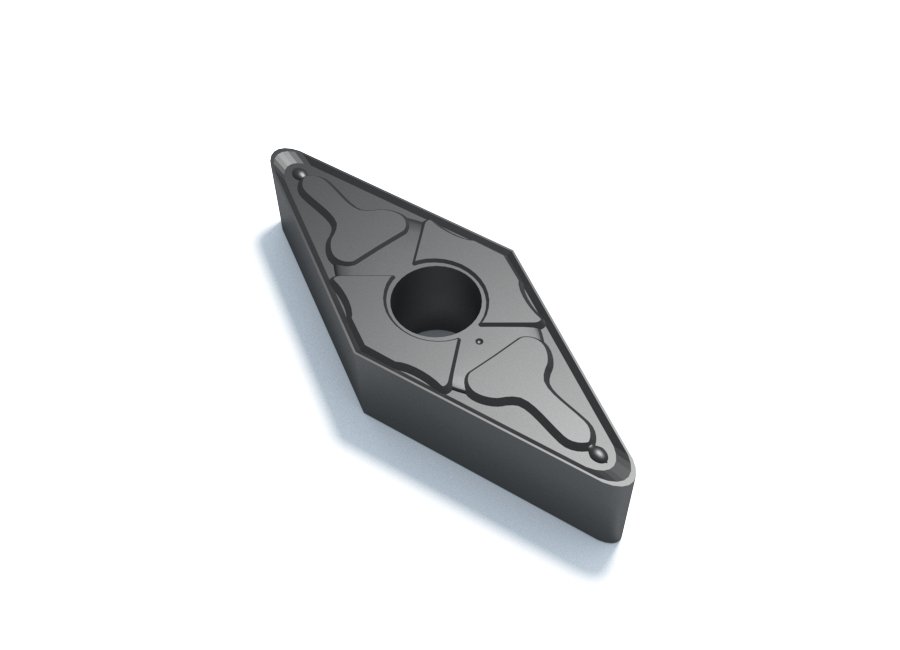

The VNMG160408 CS5225 series carbide turning inserts have a Rhombic 35° shape and a Negative insert geometry. The CS5225 chipbreaker is designed for Roughing applications and ideal for P15-P35 Steel. Sangeo’s range of turning inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.
- VNMG style Carbide Turning Inserts
- CS5225 is the first recommended grade for general machining with the use of high toughness substrate and coating layer with improved welding/chipping resistance
- Negative Geometry
- Rhombic 35° Shape
Specification
| Brand | Sangeo |
| Shape – Degrees | Rhombic 35° |
| Insert Geometry | Negative |
| Applicable Materials | Steel |
| Chipbreaker | Roughing |
| Product Range | Carbide Turning Inserts |
| Grade Description | CS5225 (P15-P35 Steel) |
| Grade | CS5225 (Steel) |
| r (Radius) | 0.8 |
| Insert Style | VNMG |
| T (Thickness) | 4 |
| IC (Length) | 16 |
| ISO Code | VNMG160408 |
