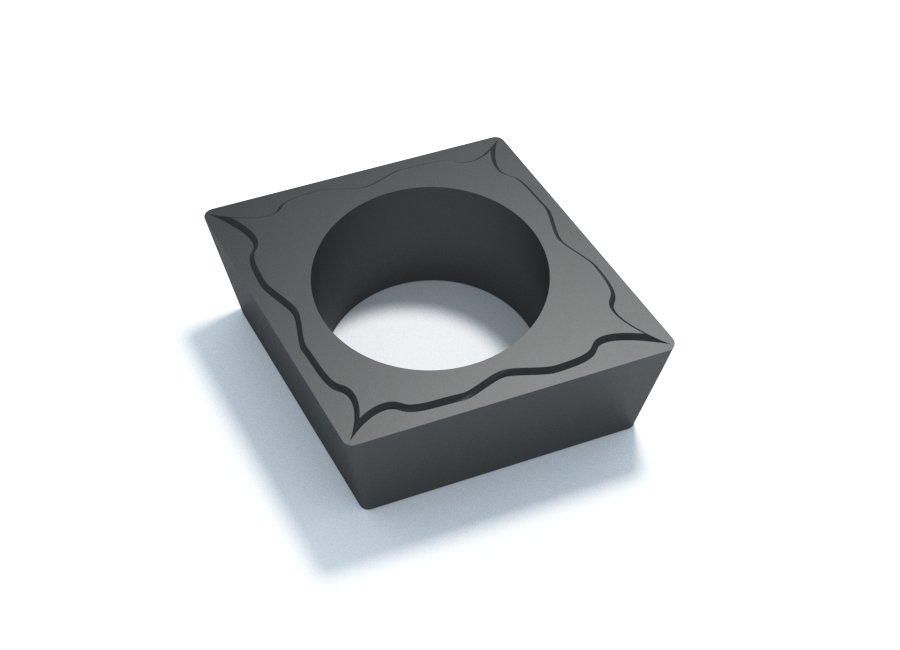

CCMT060204-HF CS5225 Medium-Finishing Carbide Turning Inserts (Sangeo)
£3.40 exc. VAT
10 pieces (Min. Order)
The CCMT060204-HF CS5225 series carbide turning inserts have a Rhombic 80° shape and a Positive insert geometry. The HF chip breaker is designed for Finishing applications and comes in a CS5225 grade ideal for P15-P35 Steel. Sangeo’s range of turning inserts is made from a fine micro-grain carbide substrate for excellent toughness and performance.
- CCGT-style Carbide Turning Inserts
- US2115 uncoated grade ideal for a mirror finish turning of Aluminium & Non-Ferrous materials
- Positive Geometry
- Ground AK chip-breaker with sharp cutting edge, ultra-high positive rake and buffed top face. Provides excellent chip control in small to large depths of cut whilst ensuring mirror finish results
- Rhombic 80° Shape
Description
Product Information
Features & Benefits
The CCMT060204-HF CS5225 series carbide turning inserts have a Rhombic 80° shape and a Positive insert geometry. The HF chipbreaker is designed for Finishing applications and comes in a CS5225 grade ideal for P15-P35 Steel. Sangeo’s range of turning inserts are made from a fine micrograin carbide substrate for excellent toughness and performance.
- CCMT style Carbide Turning Inserts
- CS5225 is the first recommended grade for general machining with the use of high toughness substrate and coating layer with improved welding/chipping resistance
- Positive Geometry
- HF Finishing chipbreaker for positive geometry inserts. Superior chip control with small depths of cut. Excellent surface finish
- Rhombic 80° Shape
Specification
| Brand | Sangeo |
| Relief Angle | 7° |
| Shape – Degrees | Rhombic 80° |
| Insert Geometry | Positive |
| Applicable Materials | Steel |
| Chipbreaker | HF (Finishing) |
| Product Range | Carbide Turning Inserts |
| Grade Description | CS5225 (P15-P35 Steel) |
| Grade | CS5225 (Steel) |
| r (Radius) | 0.4 |
| Insert Style | CCMT |
| T (Thickness) | 2 |
| IC (Length) | 6 |
| ISO Code | CCMT060204 |
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping & Delivery
- Free Shipping on All Orders
- International Tracked Service > £ 20
