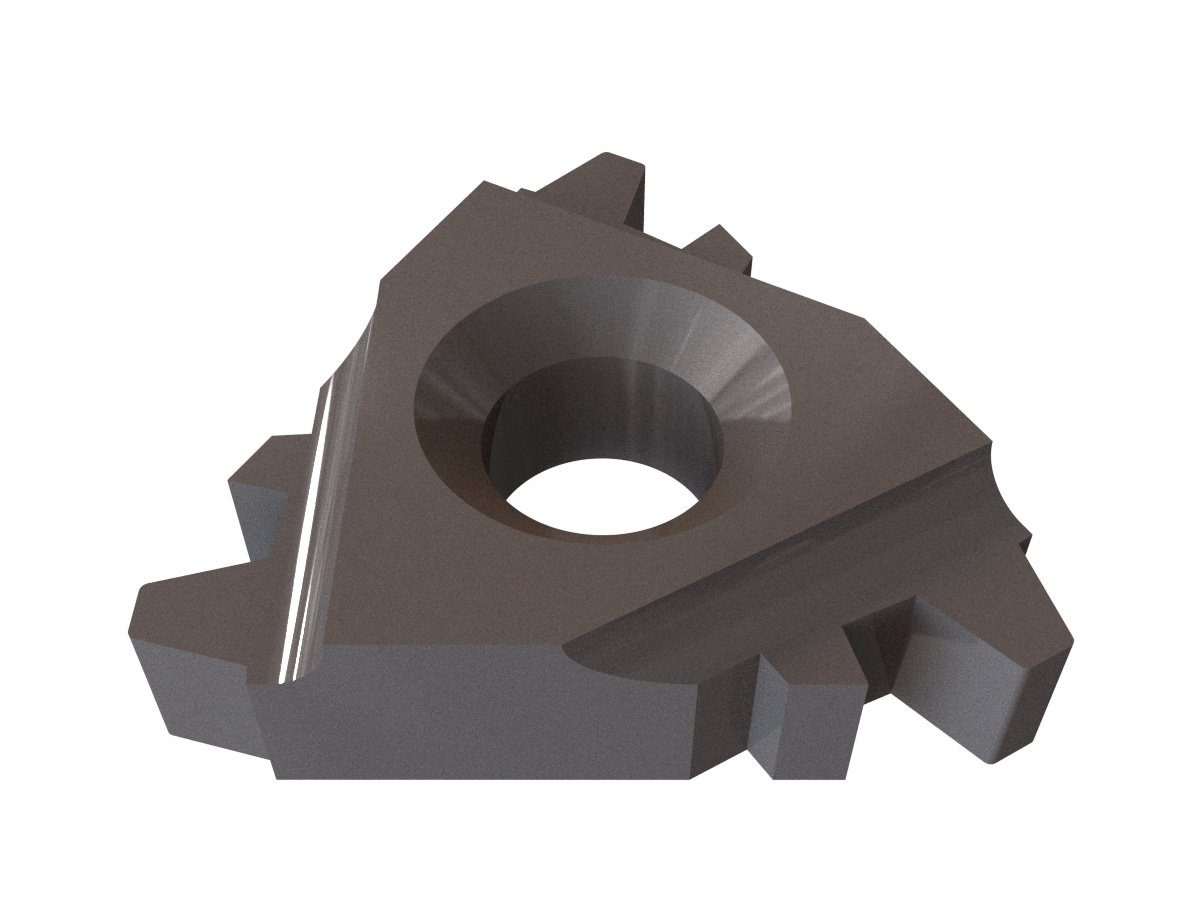

Sangeo single point threading inserts for Internal Right Hand Partial Profile 60° threads. Sangeo Size 08 = 4,76mm, Size 11 = 6,35mm, Size 16 = 9,525mm, Size 22= 12,70mm, Size 27= 15,875mm.
- PVD coated grade for General Machining (HRSA’s, Cast Iron, Steel, Stainless Steel)
- Partial Profile 60° Threading Insert
- For Internal Right Hand Threads
Specification
| Brand | Sangeo |
| Product Range | Threading Inserts |
| Insert Designation | 08IR-A60 |
| Type | Internal |
| Thread Form | Partial Profile 60° |
| Hand | Right Hand |
| Applicable Materials | HRSA’s, Cast Iron, Steel, Stainless Steel |
| Surface Treatment | PVD |
| Insert Size | 08 |
| Grade | PS9425 |
| DESCRIPTION | DIMENSIONS | ||||||
| Pitch | TPI | d | l | hmin | x | f | |
| 08IR-A60 | 0.5~1.5 | 48-16 | 4.76 | 8 | 0.05 | 0.6 | 0.7 |
| 11IR-A60 | 0.5~1.5 | 48-16 | 6.35 | 11 | 0.05 | 0.8 | 0.9 |
| 16IR-A60 | 0.5~1.5 | 48-16 | 9.525 | 16 | 0.05 | 0.8 | 0.9 |
| 16IR-G60 | 1.75~3.0 | 14-8 | 9.525 | 16 | 0.27 | 1.2 | 1.7 |
| 16IR-AG60 | 0.5~3.0 | 48-8 | 9.525 | 16 | 0.08 | 1.2 | 1.7 |
| 22IR-N60 | 3.5~5.0 | 7-5 | 12.7 | 22 | 0.53 | 1.7 | 2.5 |
| 27IR-Q60 | 5.5~6.0 | 4.5-4 | 15.875 | 27 | 0.64 | 2.1 | 3.1 |
