Product Information
Features & Benefits
The MFRT 90040R-10-6T Face Mill from Sangeo provides low cutting resistance and smooth chip flow with true 90 degree perpendicular milling. Holders range from 40-63mm diameter and take the RT inserts.
- Face Mill Style
- For high performance machining of steels, stainless steel, HRSA’s, cast iron, exotics, and non-ferrous materials
- Simple screw on system & stable support gives strong clamping force
- Low cost insert and holders
- Perfect tool for low cost general machining
Specification
| Brand | Sangeo |
| Product Range | Milling Holders |
| Holder Style | MFRT |
| Approach Angle | 90° |
| Tool Holder Type | Face Mill |
| Insert Type | RT |
| Shank Type | Spigot |
| Applicable Materials | HRSA’s, Cast Iron, Exotics, Non-Ferrous, Stainless Steel, Steel |

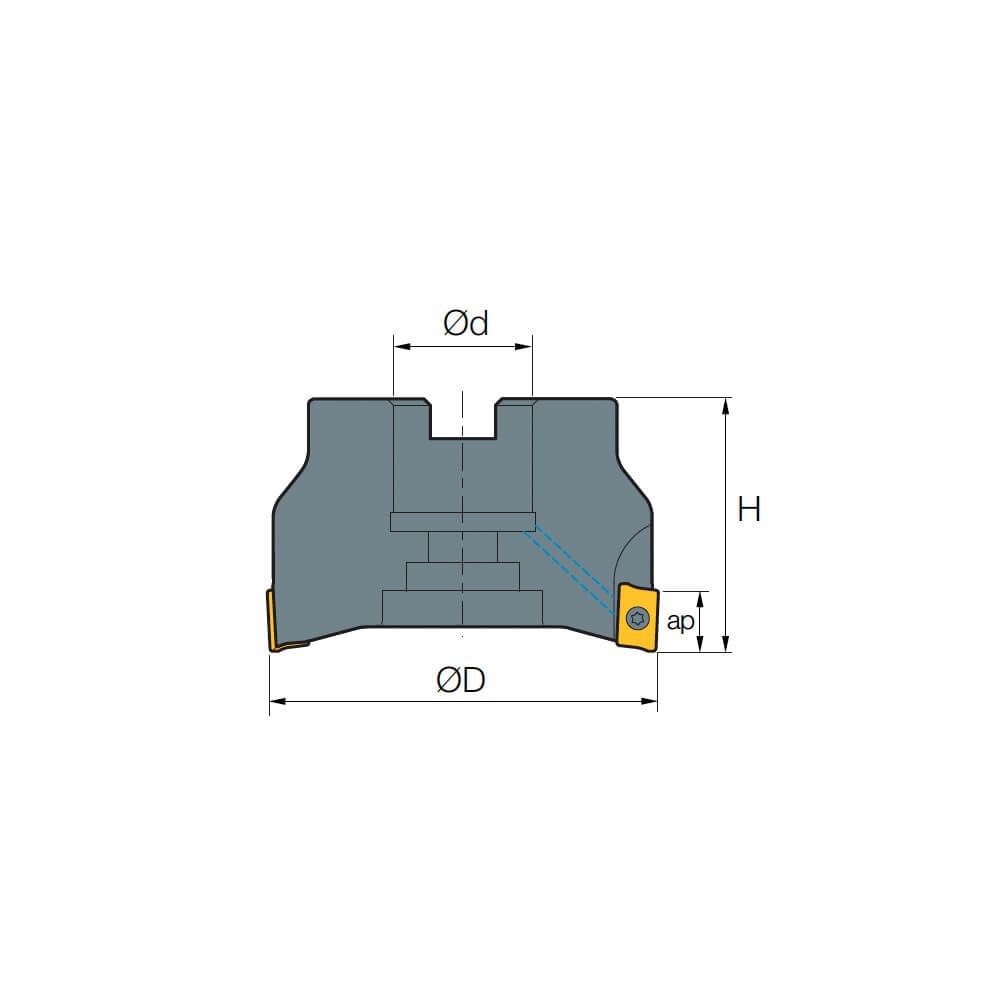

| ØD (Cutting Diameter) | 40 |
| Ød (Connection Diameter Machine Side-Spigot) | 16 |
| H (Overall Length) | 40 |
| ap (Depth of Cut Maximum) | 10 |
| Z (Number of Inserts-Teeth) | 6T |
| DESCRIPTION | DIMENSIONS | SPARE PARTS | |||||
| ØD | Ød | H | ap | Z | Screw | Wrench | |
| MFRT 90040R-10-6T | 40 | 16 | 40 | 10 | 6T | ST-SC0257 | ST-WRT08 |
| MFRT 90040R-10-6T-C | 40 | 16 | 40 | 10 | 6T | ST-SC0257 | ST-WRT08 |
| MFRT 90050R-10-7T | 50 | 22 | 40 | 10 | 7T | ST-SC0257 | ST-WRT08 |
| MFRT 90050R-10-7T-C | 50 | 22 | 40 | 10 | 7T | ST-SC0257 | ST-WRT08 |
| MFRT 90063R-10-9T | 63 | 27 | 40 | 10 | 9T | ST-SC0257 | ST-WRT08 |
| MFRT 90063R-10-9T-C | 63 | 27 | 40 | 10 | 9T | ST-SC0257 | ST-WRT08 |
